Laser Measurement

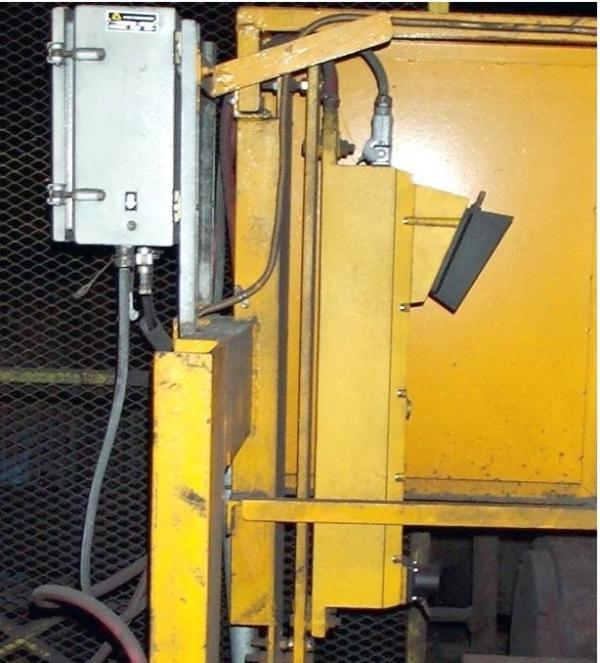

• At the entry or exit of the reheat furnace a combination of laser distance measurement sensors Trilas TL or Dilas FT are used to measure critical dimensions of each slab for verification and to optimize the setup of the rolling mill.
• The width profile is used for protection of the vertical edgers and feed forward set-up of the mill for optimizing the yield through improved width control.

Stereoscopic Width Gauge DigiScan XD4000

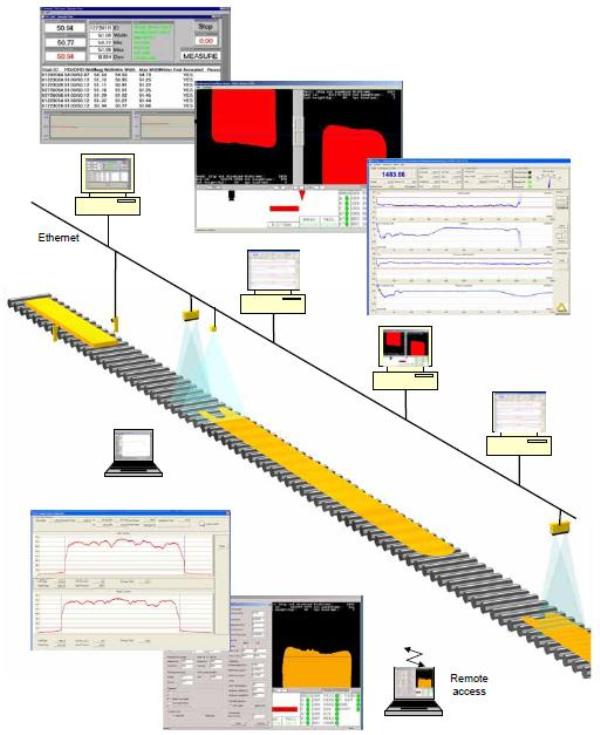

• Using state-of-the-art technology the DIGISCAN XD4000 stereoscopic width gauge is designed for width measurement of hot plate and strip, at the roughing mill, finishing mill and before coiler.
• Compact, easy to install and maintain
• Client - server architecture for multiple connection and flexibility
• High resolution, user friendly graphic display
• Extended data logging features
• Optional feature includes thermal profile, plate profile with head and tail zoom.

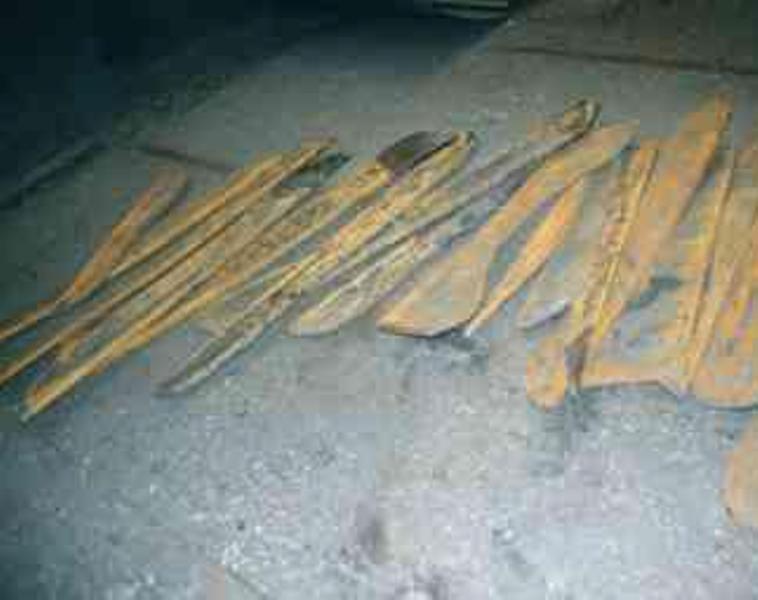

• Vision System based on high speed area camera to capture the images of the head and tail ends of the transfer bar
• Pattern recognition software that intelligently analyse the images to precisely determine the ends profiles
• Strategies matrix to determine the optimum cut line position
• Flexible configuration for straight through rougher, reversing rougher, and for coil box operation
